0x01 编写mcp server
基于FastMCP框架的异步工具服务器，提供了多种实用的功能，例如端口可达性测试、域名解析、通过SSH查看服务器监听端口和防火墙规则等。
from mcp.server.fastmcp import FastMCP
import socket
import asyncio
# 创建FastMCP实例
mcp = FastMCP("Demo")
@mcp.tool()
async def ping_port(host: str, port: int, timeout: float = 2.0) -> str:
"""
测试指定主机的端口是否可达。
Args:
host: 目标主机名或IP地址
port: 要测试的端口号
timeout: 超时时间（秒），默认为2秒
Returns:
str: 端口测试结果
"""
try:
# 创建异步任务
loop = asyncio.get_event_loop()
future = loop.run_in_executor(None, _check_port, host, port, timeout)
result = await future
if result:
return f"成功: 主机 {host} 的端口 {port} 可达。"
else:
return f"失败: 主机 {host} 的端口 {port} 不可达。"
except Exception as e:
return f"错误: {str(e)}"
def _check_port(host: str, port: int, timeout: float) -> bool:
"""同步函数，检查端口是否开放"""
try:
sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.settimeout(timeout)
result = sock.connect_ex((host, port))
sock.close()
return result == 0
except Exception:
return False
@mcp.tool()
async def resolve_domain(domain: str) -> str:
"""
将域名解析为IP地址。
Args:
domain: 要解析的域名
Returns:
str: 解析结果，包含IP地址或错误信息
"""
try:
# 创建异步任务
loop = asyncio.get_event_loop()
future = loop.run_in_executor(None, _resolve_domain, domain)
result = await future
if result:
return f"成功: 域名 {domain} 解析为 {result}"
else:
return f"失败: 无法解析域名 {domain}"
except Exception as e:
return f"错误: {str(e)}"
def _resolve_domain(domain: str) -> str:
"""同步函数，解析域名为IP地址"""
try:
ip_address = socket.gethostbyname(domain)
return ip_address
except socket.gaierror:
return ""
@mcp.tool()
async def check_listening_ports(ip: str, username: str, password: str, ssh_port: int = 22) -> str:
"""
通过SSH连接到服务器，查看主机监听的端口。
Args:
ip: 服务器IP地址
username: SSH用户名
password: SSH密码
ssh_port: SSH端口，默认为22
Returns:
str: 监听端口列表或错误信息
"""
try:
# 创建异步任务
loop = asyncio.get_event_loop()
future = loop.run_in_executor(None, _check_listening_ports, ip, username, password, ssh_port)
result = await future
if result:
return f"成功: 主机 {ip} 的监听端口:\n{result}"
else:
return f"失败: 无法获取主机 {ip} 的监听端口信息"
except Exception as e:
return f"错误: {str(e)}"
def _check_listening_ports(ip: str, username: str, password: str, ssh_port: int) -> str:
"""同步函数，通过SSH连接到服务器并获取监听端口"""
try:
import paramiko
client = paramiko.SSHClient()
client.set_missing_host_key_policy(paramiko.AutoAddPolicy())
client.connect(ip, port=ssh_port, username=username, password=password, timeout=10)
# 执行命令获取监听端口
stdin, stdout, stderr = client.exec_command("netstat -tuln | grep LISTEN")
output = stdout.read().decode()
client.close()
return output if output else "未发现监听端口"
except Exception as e:
return ""
@mcp.tool()
async def check_firewall_ports(ip: str, username: str, password: str, ssh_port: int = 22) -> str:
"""
通过SSH连接到云主机，查看防火墙放行的端口。
Args:
ip: 服务器IP地址
username: SSH用户名
password: SSH密码
ssh_port: SSH端口，默认为22
Returns:
str: 防火墙放行端口列表或错误信息
"""
try:
# 创建异步任务
loop = asyncio.get_event_loop()
future = loop.run_in_executor(None, _check_firewall_ports, ip, username, password, ssh_port)
result = await future
if result:
return f"成功: 主机 {ip} 的防火墙放行端口:\n{result}"
else:
return f"失败: 无法获取主机 {ip} 的防火墙放行端口信息"
except Exception as e:
return f"错误: {str(e)}"
def _check_firewall_ports(ip: str, username: str, password: str, ssh_port: int) -> str:
"""同步函数，通过SSH连接到服务器并获取防火墙放行端口"""
try:
import paramiko
client = paramiko.SSHClient()
client.set_missing_host_key_policy(paramiko.AutoAddPolicy())
client.connect(ip, port=ssh_port, username=username, password=password, timeout=10)
# 尝试使用不同的防火墙工具获取放行端口
# 首先尝试iptables
stdin, stdout, stderr = client.exec_command("command -v iptables && sudo iptables -L -n")
iptables_output = stdout.read().decode()
# 尝试firewalld
stdin, stdout, stderr = client.exec_command("command -v firewall-cmd && sudo firewall-cmd --list-all")
firewalld_output = stdout.read().decode()
# 尝试ufw
stdin, stdout, stderr = client.exec_command("command -v ufw && sudo ufw status")
ufw_output = stdout.read().decode()
client.close()
result = ""
if iptables_output:
result += "===== iptables 防火墙规则 =====\n" + iptables_output + "\n"
if firewalld_output:
result += "===== firewalld 防火墙规则 =====\n" + firewalld_output + "\n"
if ufw_output:
result += "===== ufw 防火墙规则 =====\n" + ufw_output + "\n"
return result if result else "未能获取防火墙规则或无防火墙配置"
except Exception as e:
return ""
@mcp.resource("greeting://{name}")
def get_greeting(name: str) -> str:
"""获取个性化问候语"""
return f"Hello, {name}!"
if __name__ == "__main__":
# 使用SSE传输
mcp.run(transport='sse')
0x02 启动mcp服务器
/usr/local/bin/python3 mcp_server.py
INFO: Started server process [44456]
INFO: Waiting for application startup.
INFO: Application startup complete.
INFO: Uvicorn running on http://0.0.0.0:8000 (Press CTRL+C to quit)
INFO: 127.0.0.1:63410 - "GET /sse HTTP/1.1" 200 OK
0x03 cherry studio配置

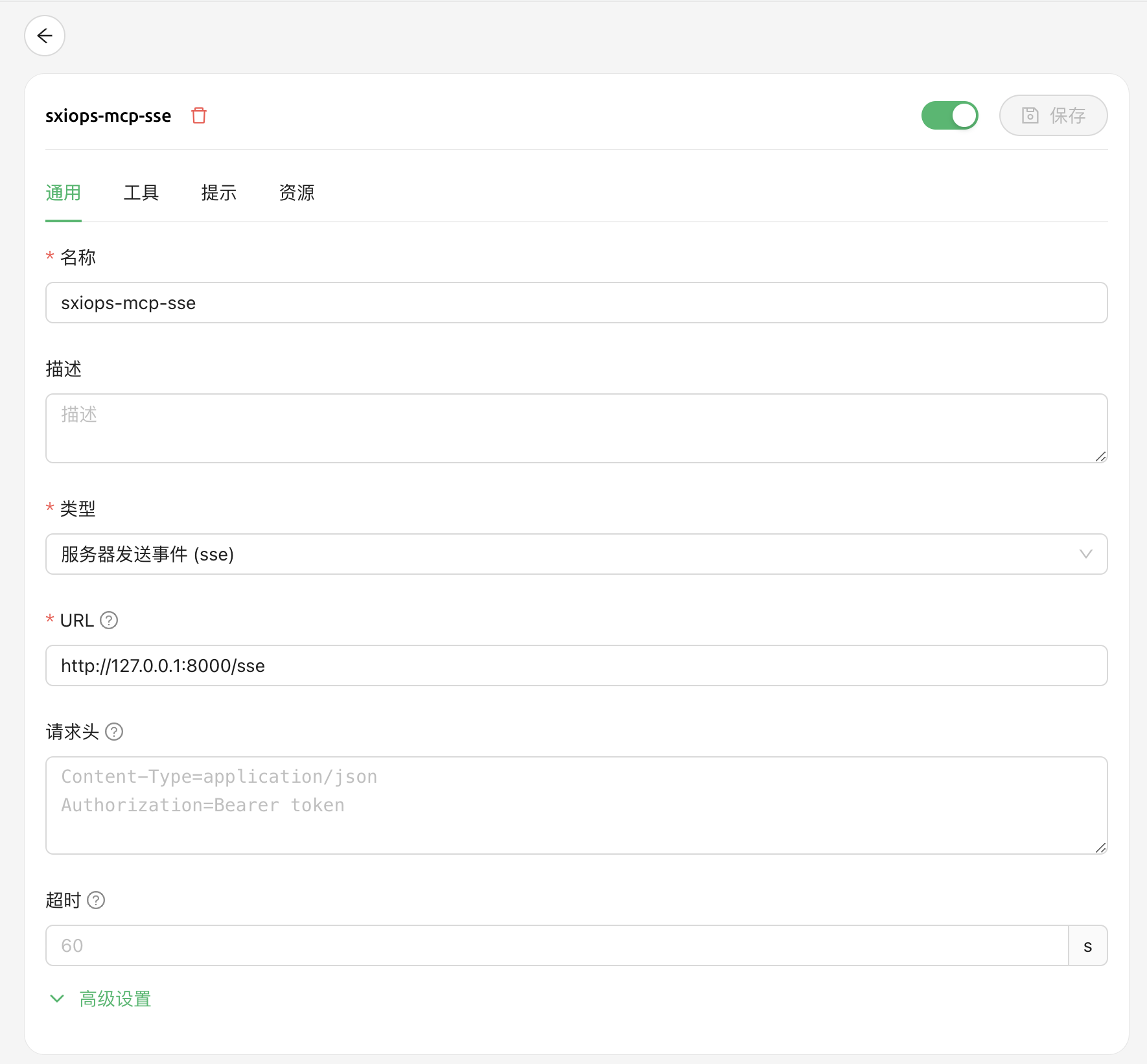

配置mcp服务器地址

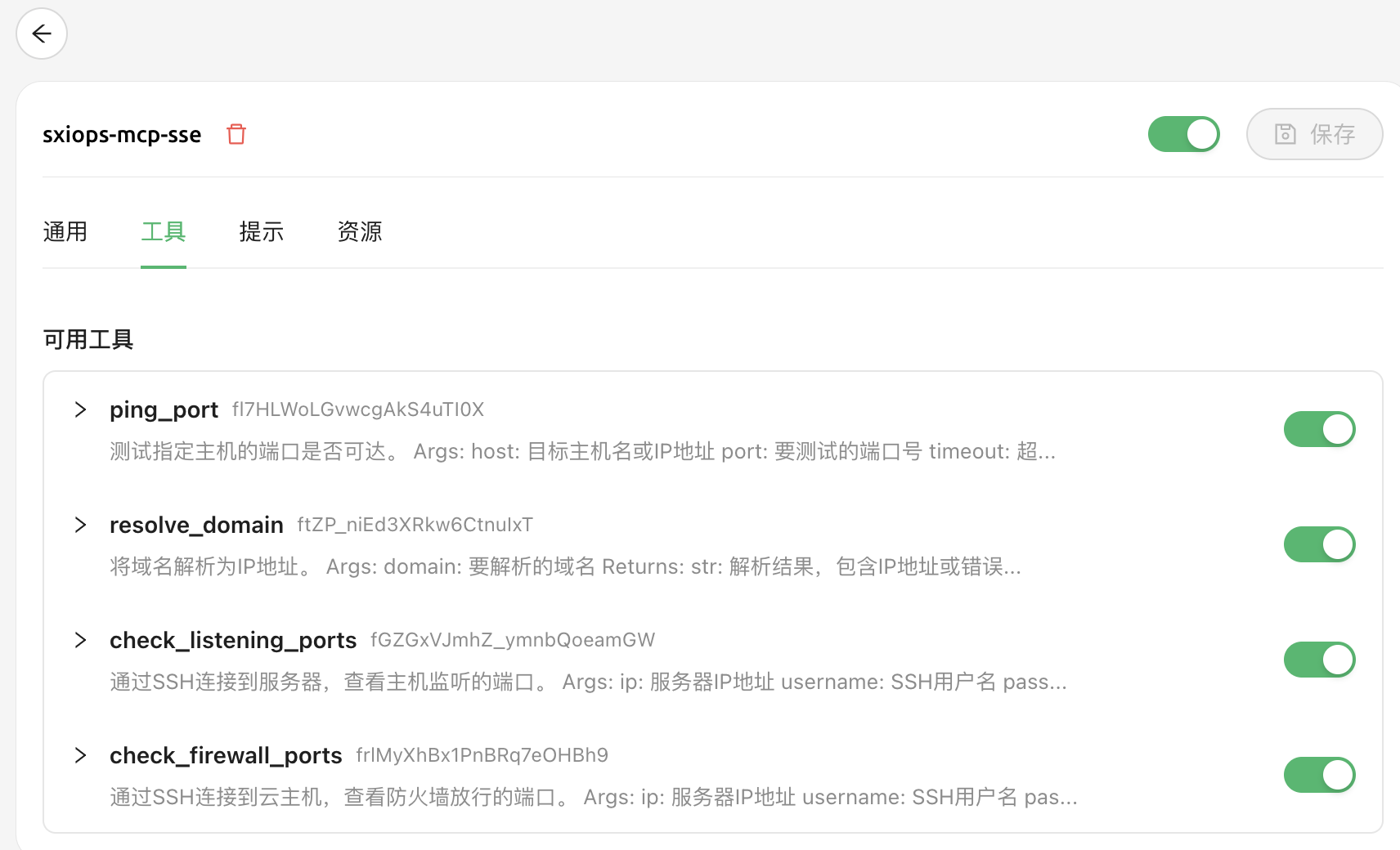

查看可用工具列表
0x03 实现截图

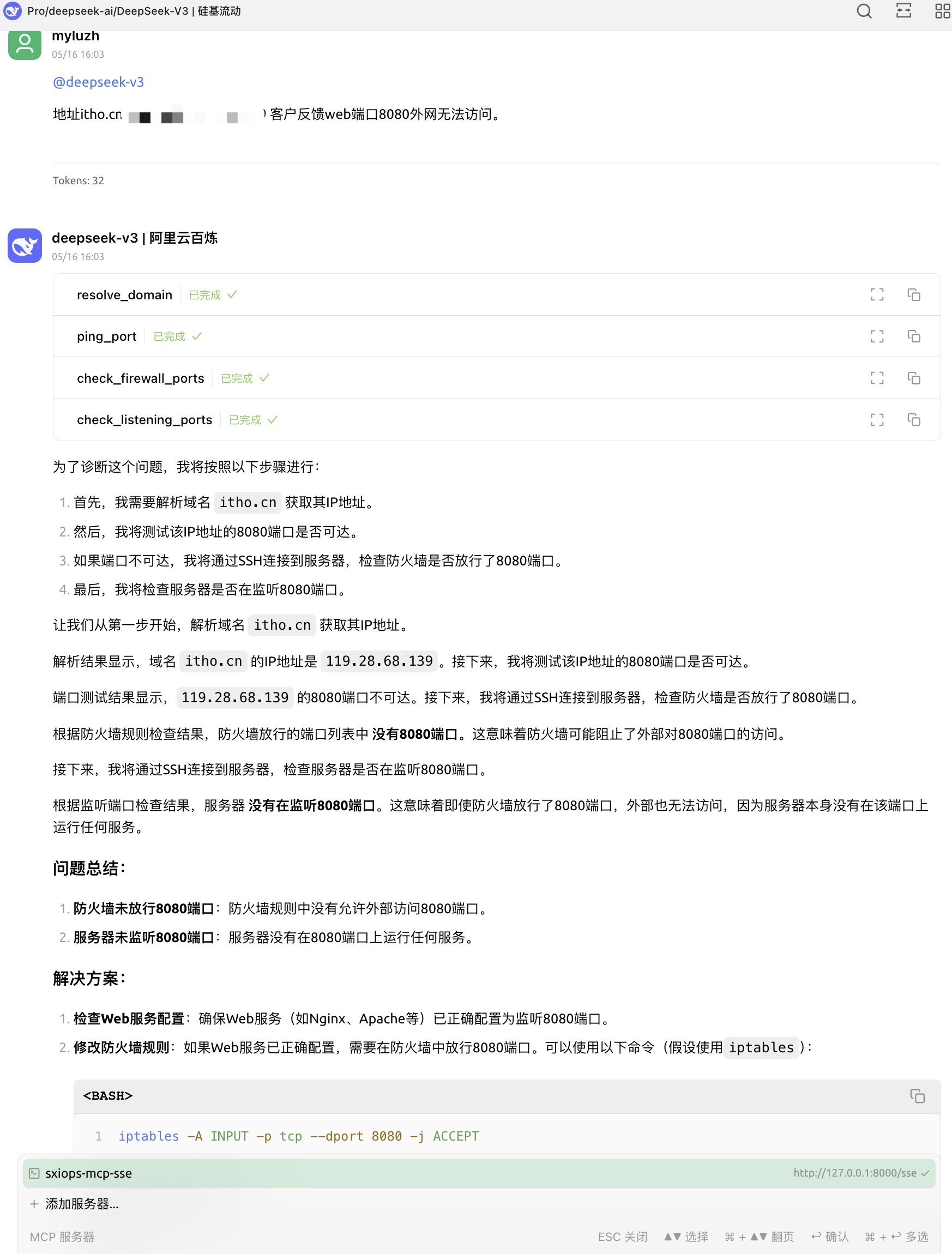

给提示词，llm自动选择工具
参考链接：
Python使用FastMCP开发MCP服务端 https://blog.csdn.net/heian_99/article/details/147253836
简单修改将stdio协议的mcp项目转为sse协议的mcp项目 https://blog.csdn.net/wuud__/article/details/147306959
